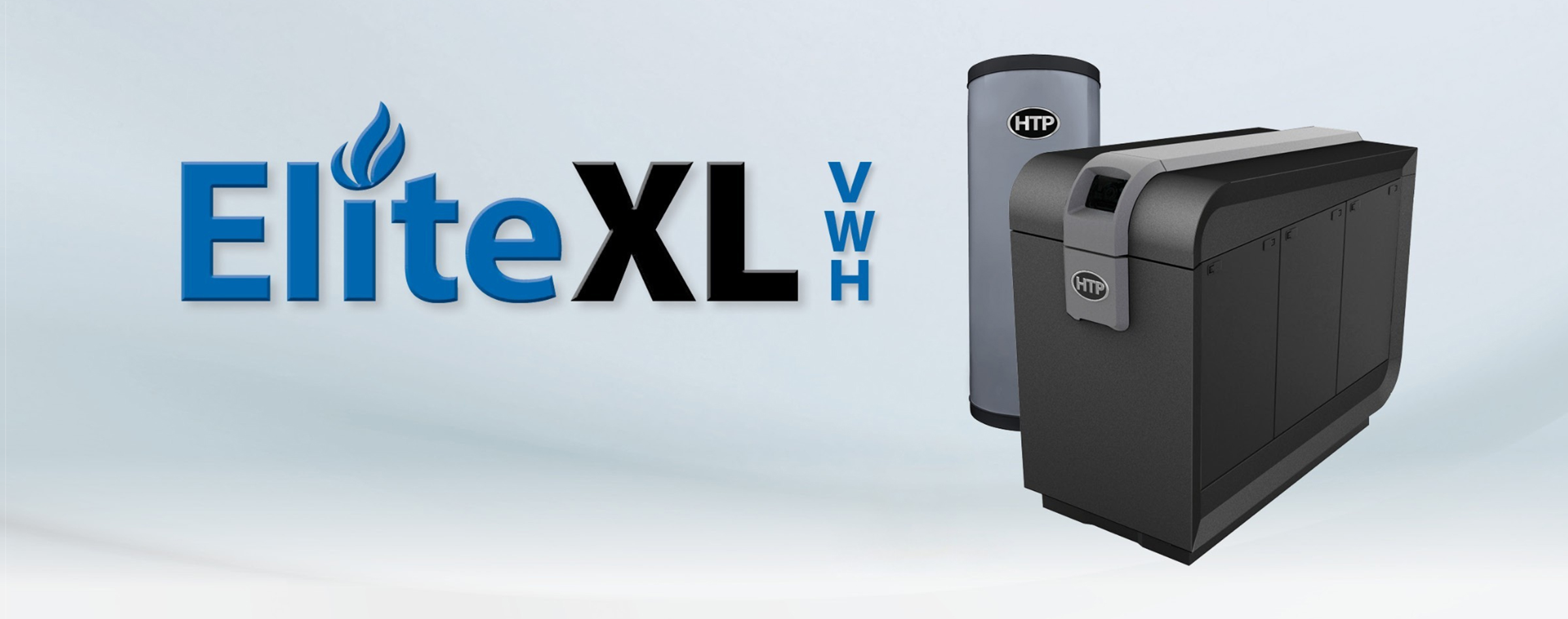

Elite XL VWH

Elite XL® Volume Water Heater - Where Efficiency Meets Connectivity

The Elite XL VWH is a powerful commercial hot water supply boiler that is available in 6 sizes ranging from 400,000 Btuh to 2,000,000 Btuh. The 4 pass heat exchanger not only increases heat transfer but allows for one of the smallest footprints of commercial hot water supply boilers in the industry making installation in even the most confined places possible. It is truly a one of a kind design from the inside, out.

view brochure

Free Consultation!

for more information and product savings, select an option below


Efficiency with Extra Power

An inside look at the Elite XL VWH





The Elite XL VWH's highly efficient 4 pass heat exchanger design multiplies the heat transfer for the most efficient output along with a modulating burner that has an up to 10 to 1 turndown. Having a Thermal Efficiency of up to 98%, the user can conserve energy, providing savings on monthly bills.

The Elite XL VWH features an all stainless steel 160 PSI ASME stamped heat exchanger that is National Board listed. .


Easy to Read Display





Monitoring the Elite XL VWH is made simple with the 928 digital operating control with full color touch screen display. Built in fault indicators allows for easy detection of required maintenance for the DHW pump, system fault, system operation, freeze protection and flame on.



view specifications
Elite-XL-inside

Elite XL VWH Models

Elite-XL-Models



Model Number Input Max (MBH) Minimum /Maximum Btu/Hour
ELX-400FVWHN 399 39,900 / 399,000
ELX-500FVWHN 500 50,000 / 500,000
ELX-650FVWHN 650 65,000 / 650,000
ELX-800FVWHN 800 80,000 / 800,000
ELX-1000FVWHN 1000 100,000 / 1,000,000
ELX-2000FVWHN 2000 200,000 / 2,000,000

Connecting Remotely for Reliability

HTP Link

The Elite XL Volume Water Heater comes equipped with HTP Link technology, a WiFi solution that enables remote monitoring of the appliance and its system. Proper personnel of your choice will be sent a text message or e-mail alert when faults or other key activities occur in the hot water supply boiler, allowing you peace of mind even when you are not at the location of the appliance. When you are on location, the easy to use, high resolution touch screen provides a clear visual of the system operation allowing you to easily monitor and troubleshoot should you need to.


Advanced Assurance

The Elite XL VWH is backed by a 5 year limited warranty - no registration is required.

view warranty

Fast connection, anywhere





Download HTP’s FREE Mobile App. Perfect for when you need guidance on the job. You’ll be able to access installation manuals, parts and installation drawings, brochures, troubleshooting videos and more.



download the app
